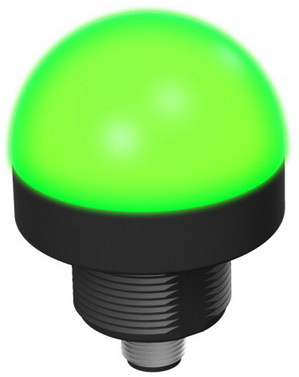

K50L Hazardous Area Indicator
|
|
Available in our most popular housing model, the K50L hazardous areas indicators are available in intrinsically safe, encapsulated and non-sparking models.
Available in intrinsically safe (Ex ia), encapsulated (Ex mn/Ex ta), and non-sparking (Ex nA/Ex tc) enclosure models
Extensive approvals for use in every classified zone or area, including worldwide IECEx approval for quicker access outside of North America and Europe
Five colors available, display up to three colors in one device
Appears gray when off to eliminate false indication from ambient light
Long lasting LED technology for years of maintenance-free operation
Product Specifications
Supply Voltage and Current Encapsulated & Nonsparking: 10 to 30V dc (25 mA max.) Intrinsically Safe:See Datasheet
Indicators Entire translucent diffuser or dome provides indication. LEDs are independently selected: Green,Red, Yellow, Blue, or White; 1, 2, or 3 colors, depending on model. For other colors/combinations, contact Banner Engineering for availability.
Construction Base: polycarbonate
Translucent dome:polycarbonate
Connections 4-pin Euro integral QD, 2 m (6.5 ft) PVC integral
cable, or 150 mm (5.9 in) 4-pin Euro PVC Pigtail QD
Environmental Rating IP67/IP69K
Operating Conditions −40 oC to +50 oC (−40 oF to +122 oF) or −40 oC to +40 oC (−40 oF to +104 oF), depending on model |
|
