Videojet Marsh 8000

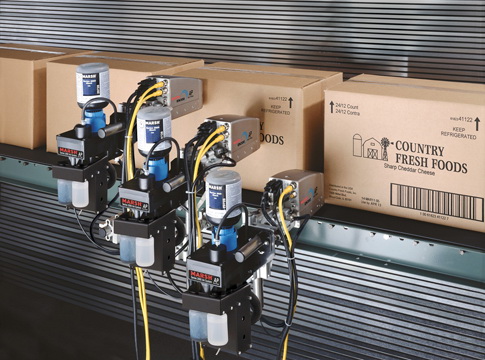

The Videojet Marsh 8000 system combines high resolution printing with a highly advanced user interface, making message creation quick, easy and virtually error-free. The system can print with eight low-maintenance, auto-purge printheads providing maximum flexibility to either print on four sides of a box or print on two independent production lines simultaneously.

Smart and intuitive design enhances user experience:
10.4 inch color LCD touchscreen simplifies daily operation and can store production information in internal databases for fast and accurate coding especially during change-overs
Multiple levels of security to protect operationally critical settings
Uptime Advantage and built-in productivity save time and money:
Coding on the top of cases, printing down, to replace existing labeling applications
Run multiple printheads from a single controller and use the printheads to print on multiple sides of a case for easier identification in the supply chain
Print high quality bar codes that can be scanned for automatic data-entry in downstream supply chain applications
Autopurge printhead eliminates dust and debris that can interfere with printing, reducing operator intervention and downtime
Simple Usability keeps operators focused on production, not the printer:
WYSIWYG menu-driven controller for creating and editing messages
Communication protocols include Ethernet, RS232, USB to match your operating requirements
Ability to integrate data collection devices, like scales and scanners, for an integrated solution

Specification
Value
Maximum Print Speed
Bar Code Printing 45 m/min (150 ft/min)
Alphanumeric Text 61 m/min (200 ft/min)
Character Height 1.5 mm - 51 mm (0.12 in - 2 in)
Print Resolution Up to 150 dpi vertical
Up to 300 dpi horizontal (depends on line speed)
Printheads
EN120 20 mm (0.8 in) high
EN200 51 mm (2 in) high
EN300 AutoPurge 51 mm (2 in) high
User Interface 10.4 inch VGA color LCD touch screen
Data Communication RS232, Ethernet
Number of Printheads Controlled from One Controller 8
Environmental Protection Optional IP66 controller kit
