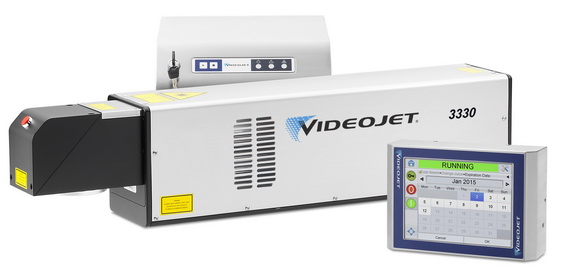

Videojet® 3330 CO2 Laser Marking System

The 3330 30-Watt laser offers a powerful combination of performance and flexibility delivering high quality marks on moderate to high speed lines. Designed to maintain the best quality codes on high speed lines. Virtually no font, code or graphic restrictions, makes the 3330 an ideal solution for marking complex codes to meet the demand of applications in food, beverage, cosmetics, pharmaceutical and extrusion industries. A diverse combination of marking heads, lenses and wavelength options, delivers an industry leading 21 spot size variations to match a broad range of marking effects.

Specification
Value
Laser Tube CO2
Maximum Power 30W
Laser Cooling Air Cooled
Maximum Print Speed 1300 characters/sec
Maximum Line Speed 900 m/min (2950 ft/min)
Environmental Protection IP32, 54, 65
Beam Output Steered Beam
Laser Source Expected Life 45,000 hours
Laser Wavelength Options 10.6 µm, 10.2 µm, 9.3 µm
Focal Distance Options 64 mm (2.50 in) - 400 mm (15.75 in)
Maximum Mark Window 485 x 351 mm (19.09 x 13.81 in)
Standard I/O Connectivity Internal Terminal Connections
Standard User Interface Handheld
Optional User Inteface PC, CLARiTY LaserController
Umbilical Detachable, 3 Lengths
Plant Air Used No
Certifications/Approvals CE, TUV/NRTL, FCC
Compliance(no certification required): ROHS,CDRH/FDA
