|AM801x Servomotor 0.22 - 0.55 Nm (standstill torque)
|AM801x | Servomotor 0.22 - 0.55 Nm (standstill torque)

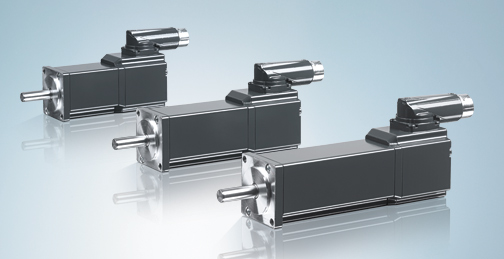

The AM8000 series is currently complemented by motors in flange size F1 (40 mm) for drive solutions with minimised space requirements. Three overall lengths covering a torque range from 0.22 to 0.55 Nm offer a low rotor moment of inertia and very high overload capacity. Based on these technical characteristics it is possible to implement highly dynamic applications in a very small mounting space.
The very compact motors feature electronic identification plates and are optionally available with backlashfree permanent magnet holding brake or feather key groove. To provide maximum motor performance in a compact size, the motors are designed with absolute encoder feedback and One Cable Technology (OCT). OCT uses a single cable for motor supply and position feedback. This means that only one connector is required at the motor, which reduces cabling costs significantly.
Typical areas of application for these motors are traversing and feed axes.
integrated absolute encoder
multi-turn drive position storing without battery backup in EEPROM
electronic indentification plate
230 V AC systems
matching AX5000 EtherCAT Servo Drive: 1-/2-channel, up to 3 A
safe drive functions via the optional AX58xx TwinSAFE drive option cards
safe switching off and safe motion functions according to EN ISO 13849-1 to PLe for traversing and feed axes
torque-free switching and monitoring of velocity, position, direction of rotation
easy integration of feed axes into TwinSAFE system
