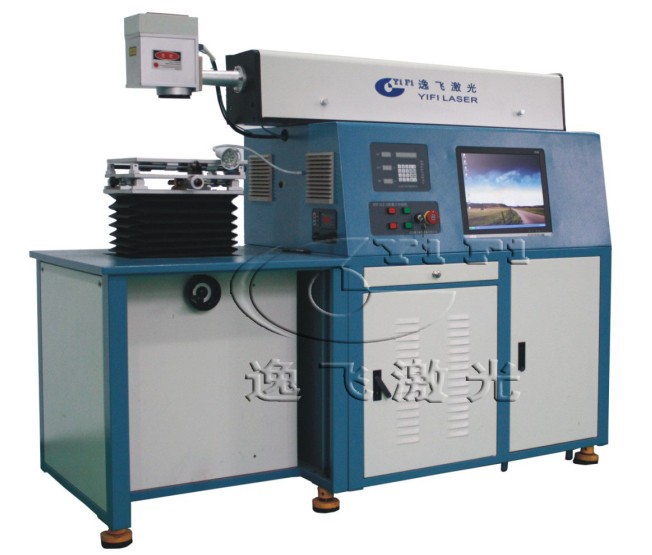

galvanometer laser welding machine
Model: EFE-LZ-100/200/300
|
|
Application:
They are widely used in spot welding and sealed welding for plate lug of power battery,cell phone shielding,metal cell phone shells, metal capacitor shells, metal screens inside computers, razor blade, electronic connectors and other products.
Technical data (Galvanometer system)
Spot welding speed <=15points/s
Position speed <=7000mm/s
Resolution 0.001mm
Repetition accuracy 0.002mm
Welding range ø65mm/ø110mm(optional)
Technical data:
Model EFE- LZ-100 EFE- LZ-200 EFE- LZ-300
wavelength 1064nm
Pulse width 0.3ms~20ms
Pulse frequency 1~20Hz
Rated output power 100W 200W 300W
Max single pulse energy 50J 70J 90J
Stability of energy <=±1.5%
Facular diameter >=0.3mm
Host Dimension 1780mmX700mmX1550mm
Continuous working hours 24h |
|
