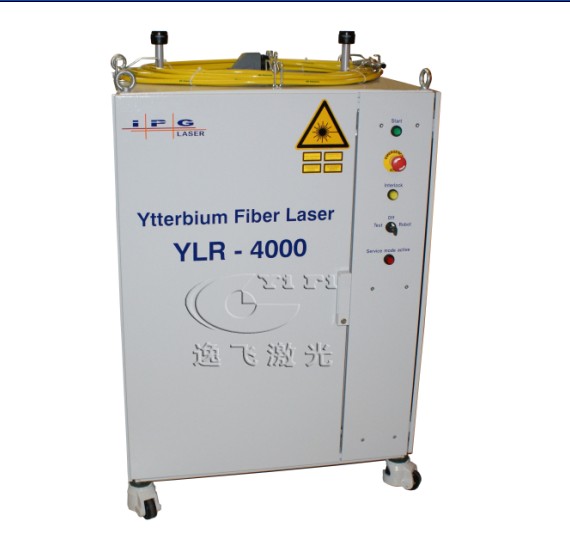

Fiber laser welding machine
Model: EFE-LP,EFE-LP-Q,EFE-LR
|
|
Application:they are widely used in the production of power battery, panel welding, body-welding processing,auto parts,hardware,pipeline welding and other field.
EFE-LP series
Technical data
Output power 500W-10kW
wavelength 1070~1080nm
Mode of operation CW,QCW,SM
Fiber diameter Single mode, 50, 100, 200, 300um
Electro-optic conversion efficiency >30%
EFE-LP-Q series
Technical data
Max average power 150W~600W (pulsed)
250W~600W (CW)
Wavelength 1070nm
Mode of operation Pulsed,CW
Max peak power 1500W~6000W
Max peak energy 15J~60J
Pulse width 0.2~10ms
Stability of energy ±0.5%
Fiber diameter Single mode, 50, 100, 200um
EFE-LR series
Technical data
Output power 700W-4000W
wavelength 1070nm±10 nm
Power range 10-100%
Beam quality <=2.5mmXmrad
Stability of energy ±2%
Pulse frequency CW-5kHz |
|
