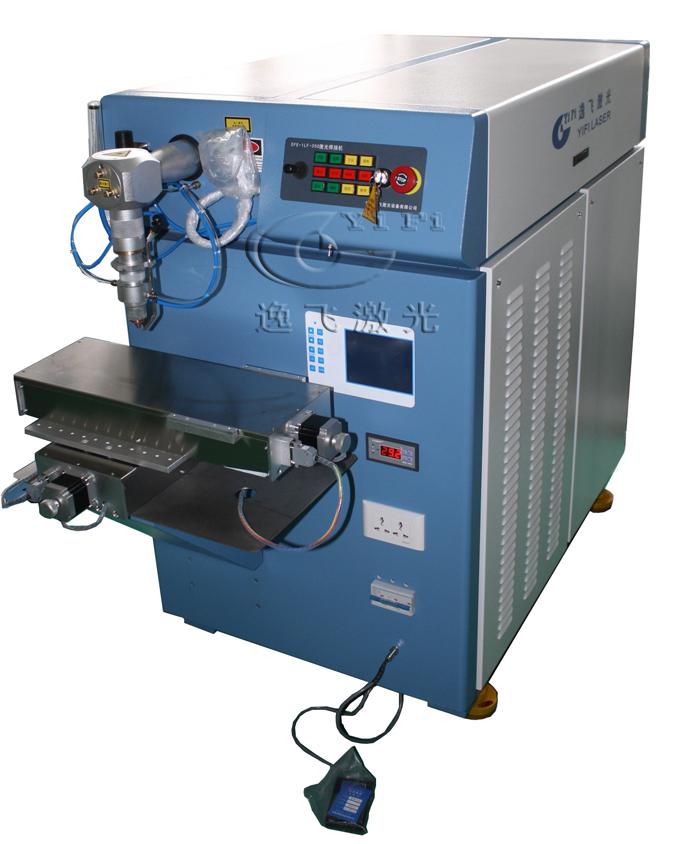

lamp pumped laser welding machine
Model: EFE-LF-350
|
|
Application:It is widely applied to aviation, machinery, electronics, communications, power, chemical, auto manufacturing and other industries.
Welding of auto parts (hydraulic tappet, gasoline filter, auto-exhaust sensor, solenoid valve and stator for starting motor).
Seal welding of lithium battery (cell phone battery, power battery)
Metallurgical industry (welding of silicon steel sheet)
Welding of sensors for military industry and engine vanes.
Precision spot welding and sealed welding of electronic components
Electrical appliance(welding of silicon-steel sheets, rotor of air conditioner motor, leakage protector and magnetic head of tape recorder)
Technical Parameters:
model EFE-1LF-260 EFE-LF-350 EFE-LF-450
wavelength 1064nm
Pulse width 0.3ms~20ms
Pulse frequency 0.1~150Hz
Rated output power 260W 350W 450W
Max output power 300W 480W 570W
Max single pulse energy 50J 90J 100J
Beam divergence angle <=8mrad
Facular diameter >=0.3mm
Stability of energy <=±1.5%
dimension 1500mmX750mmX1200mm
Continuous working hours 24h |
|
