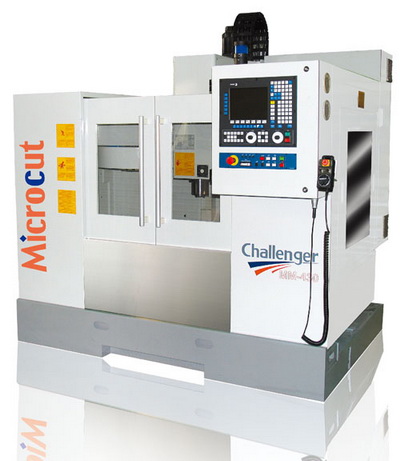

Linear Way Vertical Machining Centers
Model: MM-400
|
|
MM-400 is based on an effective principle of delivering customer value with low investment costs and combined with high production output. Compact design with Linear Guide ways for higher speed. Half guard or full guards are available on request, conveniently openable doors for work piece loading/unloading.
ITEM UNIT MM-400
Table size mm 770 x 410
Max. table load kg 250
X axis travel mm 450
Y axis travel mm 400
Z axis travel mm 460
Spindle taper ISO ISO#40
Spindle speed rpm 8000 (std) / 10000 (opt)
Main motor (conti./30min.)- Fagor kW 5.5 / 7.5
X/Y/Z Rapid feed M/min. 24/24/24
Guide way type Linear way
ATC (option) Tool 16 carousel
Machine weight kg 3300 (full guard) ; 2914 (half guard)
|
|
