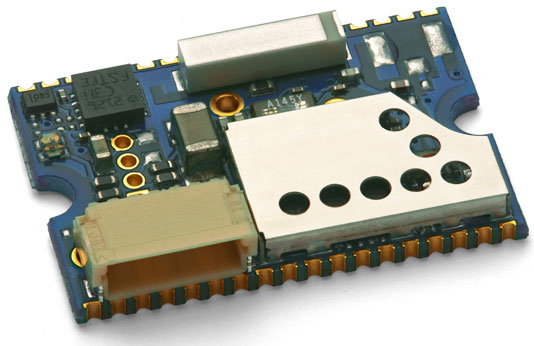

OEM Bluetooth Low Energy Platform Module OLP425
The OLP425 is a Bluetooth low energy single-mode platform module. The mounting options of a battery holder, temperature sensor, accelerometers and other sensors makes the OLP425 a complete stand-alone product, with no additional hardware required. The OLP425 is based on the Bluetooth low energy SoC TI CC2540 and is open for implementation of your own software application and Bluetooth low energy profiles, embedded in the module. The module is fully radio type approved for Europe, US and Canada. connectBlue is introducing a new smaller connectBlue module standard with the Bluetooth low energy platform module OLP425.

Bluetooth v4.0 low energy single-mode (Bluetooth Smart) - qualified as Controller Subsystem
Mounting options: battery holder, temperature sensor, accelerometers, etc
Platform for customer developed applications and profiles/attributes
GPIO/SPI/I2C/UART interface
Analog inputs
Battery life 1-10 years on coin cell battery
Solder castellations for visual inspection
Radio type approved for Europe, US and Canada (R&TTE, FCC, IC)
Compliant with EMC, Safety and Medical standards
Internal or external antenna
Industrial and Automotive operating temperature range -40ºC to +85ºC**
Small size, 15x22 mm
