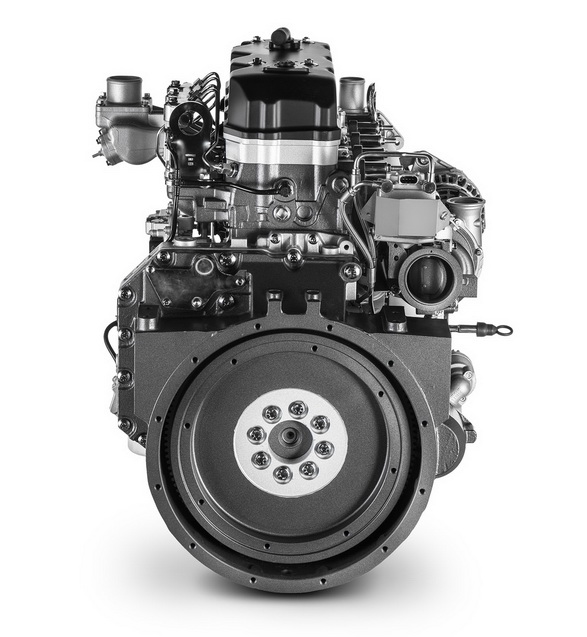

|The FPT Industrial N45 Stage V engine
|The N45 is one of the highlights of the NEF family, which has been a mark of FPT Industrial''s technological excellence since 2001. The 4.5-liter engine has a 4-cylinder configuration and delivers maximum power of 204hp, an increase of 15% compared to the previous version.
The dimensions and layout of the N45 Stage V are kept the same as the Stage IV version, preserving the unit''s lean design, which also results in the same packaging and the same cooling requirement as the previous model. Additional improvements ensure fuel efficiency, and advances in filters and the clogging sensor have led to a doubling of the service interval to 1,200 hours.
N45 Stage V Specifications
Architecture: In-Line 4-cylinder engine
Injection System: Common rail (up to 1,600 bar)
Air Handling:Wastegate Turbocharger
Valves per cylinder (number): 4
Displacement (l): 4.5
Bore x Stroke (mm):104 x 132
Max Power (kW/hp):150/204
Max Torque (Nm):800
Oil service intervals (h): 1,200
