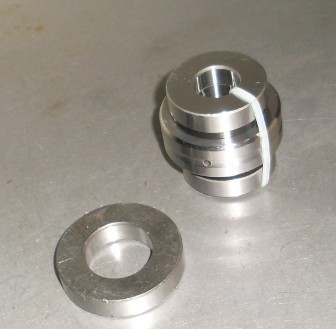

Needle/cylindrical roller thrust bearing ZARN.. -L
Model: ZARN2052TN
|
|
Needle/cylindrical roller thrust bearing ZARN.. -L
Two-way, long axis fixed gasket
Such bearing can be subject to bi-directional load and radial load, has higher precision and rigidity. ZARN, ZARF type is needle and two-way thrust assembly cylindrical roller bearing, applicable in the numerical control processing center, ball screw supporting NTR Track roller bearings,
Our distinctive combination bearings is a product of, with high precision, long life and use, etc. So far, our company production combination bearings has set up a file in a number of domestic host manufacturers and abroad. Combined-type needle bearing is by a heart to needle bearing and a combination of thrust bearing, and can therefore bear radial and axial load. Combined-type needle bearing in a very small radial space configuration of the fixed end bearing orientation. ... And other types of fixed end bearing occupies a space too big occasions, these are particularly useful.
The current code with the original code NTN INA specifications (dxDxT) weight (kg)
ZARN2052 ZARN2052 ARN2052 ZARN2052 20 "x 52 ? 46
ZARN2557 ZARN2557 ARN2557 ZARN2557 25 ? 57 ? 50
ZARN3062 ZARN3062 ARN3062 ZARN3062 30 x 62 ? 50
ZARN3570 ZARN3570 ARN3570 ZARN3570 35 x 70 ?
ZARN4075 ZARN4075 ARN4075 ZARN4075 40 x 75 x
ZARN4580 ZARN4580 ARN4580 ZARN4580 45 x 80 x 60 1.21
ZARN5090 ZARN5090 ARN5090 ZARN5090 50 x 90 x 60
ZARN2062 ZARN2062 ARN2062 ZARN2062 20 x 62 x 60
ZARN2572 ZARN2572 ARN2572 ZARN2572 25 x 72 x 60
ZARN3080 ZARN3080 ARN3080 ZARN3080 30 x 80 x 66
ZARN3585 ZARN3585 ARN3585 ZARN3585 35 x 85 x 66
ZARN4090 ZARN4090 ARN4090 ZARN4090 40 x 90 x 75
ZARN45105 ZARN45105 ARN45105 ZARN45105 45 x 105 x 82
ZARN50110 ZARN50110 ARN50110 ZARN50110 50 x 110 x 82 3.59
ZARN55115 ZARN55115 ARN55115 ZARN55115 55 x 115 x 82
ZARN60120 ZARN60120 ARN60120 ZARN60120 60 x 120 x 82 4.41
ZARN65125 ZARN65125 ARN65125 ZARN65125 65 x 125 x 82
ZARN70130 ZARN70130 ARN70130 ZARN70130 70 x 130 x 82
ZARN75155 ZARN75155 ZARN75155 75 x 155 x 108
ZARN90180 ZARN90180 ZARN90180 90 x 180 x 110
INA needle/cylindrical roller thrust bearing bidirectional, long axis fixed gasket
ZARN 1545 L TN ZARN1545-L-TV
ZARN 1545 TN ZARN1545-TV
ZARN 1747 L TN ZARN1747-L-TV
ZARN 1747 TN ZARN1747-TV
ZARN 2052 L TN ZARN2052-L-TV
ZARN 2052 TN ZARN2052-TV
ZARN 2062 L TN ZARN2062-L-TV
ZARN 2062 TN ZARN2062-TV
ZARN 2557 L TN ZARN2557-L-TV
ZARN 2557 TN ZARN2557-TV
ZARN 2572 L TN ZARN2572-L-TV
ZARN 2572 TN ZARN2572-TV
ZARN 3062 L TN ZARN3062-L-TV
ZARN 3062 TN ZARN3062-TV
ZARN 3080 L TN ZARN3080-L-TV
ZARN 3080 TN ZARN3080-TV
ZARN 3570 L TN ZARN3570-L-TV
ZARN 3570 TN ZARN3570-TV
ZARN 3585 L TN ZARN3585-L-TV
ZARN 3585 TN ZARN3585-TV
ZARN 4075 L TN ZARN4075-L-TV
ZARN 4075 TN ZARN4075-TV
ZARN 4090 L TN ZARN4090-L-TV
ZARN 4090 TN ZARN4090-TV
ZARN 45105 L TN ZARN45105-L-TV
ZARN 45105 TN ZARN45105-TV
ZARN 4580 L TN ZARN4580-L-TV
ZARN 4580 TN ZARN4580-TV
ZARN 50110 L TN ZARN50110-L-TV
ZARN 50110 TN ZARN50110-TV
ZARN 5090 L TN ZARN5090-L-TV
ZARN 5090 TN ZARN5090-TV
ZARN 55115 L TN ZARN55115-L-TV
ZARN 55115 TN ZARN55115-TV
ZARN 60120 L TN ZARN60120-L-TV
ZARN 60120 TN ZARN60120-TV
ZARN 65125 L TN ZARN65125-L-TV
ZARN 65125 TN ZARN65125-TV
ZARN 70130 L TN ZARN70130-L-TV
ZARN 70130 TN ZARN70130-TV
ZARN 75155 L TN ZARN75155-L-TV
ZARN 75155 TN ZARN75155-TV
ZARN 90180 L TN ZARN90180-L-TV
ZARN 90180 TN ZARN90180-TV |
|
