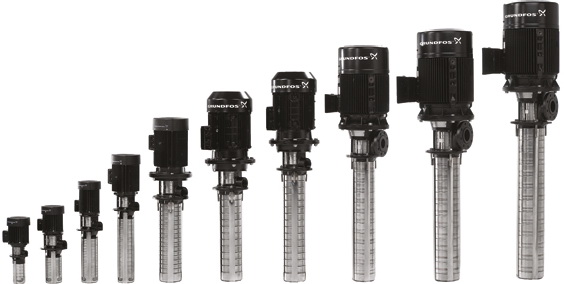

MTR, SPK, MTH, MTA pumps
MTR, SPK, MTH, MTA pumps are vertical multistage centrifugal pumps designed for pumping of cooling lubricants for machine tools, condensate transfer and similar applications.

The pumps are designed to be mounted on top of tanks with the pump stack immerged in the pumped liquid.

Grundfos MTR, SPK, MTH and MTA pumps come with various pump sizes and various numbers of stages to provide the flow, the pressure and the length required.

The pumps consist of two main components: The motor and the pump unit. The motor is a Grundfos standard MG motor designed to EN standards.

The pump unit consists of optimised hydraulics, various types of connections, a motor stool, a given number of chambers and various other parts.


The immersible pumps are suitable for liquid transfer in all applications where you have a tank. As main applications the following can be mentioned:

Milling machines
Boring machines
Drilling machines
Machining centres
Grinding machines
Filtering systems
Swarf conveyors
Spark machine tools
Industrial washing machines
Cooling units.

Features and benefits

Flexible installation length
Wide performance range
Simple installation.
