3D Scanner EaScan-H
Model: EaScan-H

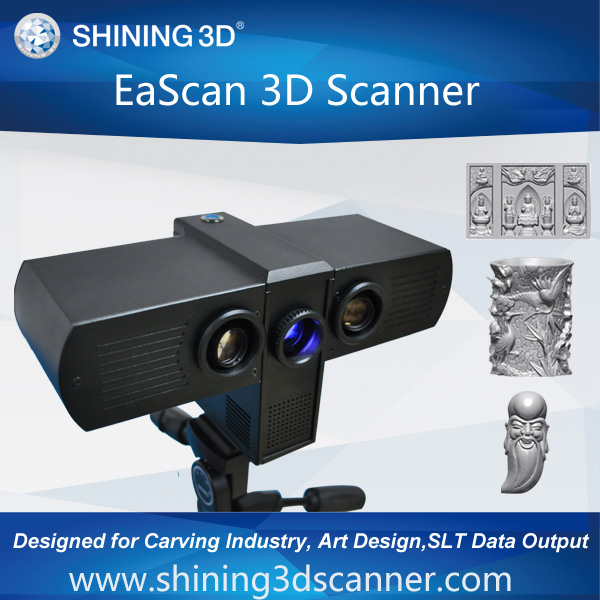

EaScan 3D Scanner | Professional 3D Scanner for Carving Industry, Art Design

EaScan 3D Scanner are the latest generation 3D scanner designed by Shining 3D especially for carving industry on the basis of virtual production and processing of carving manufacturers.EaScan 3D Scanner share the features of Shining 3D scanners, like non-contact, auto alignment, high efficiency, high precision, long lifetime and high stability.

Applications:
-Data capture: 3D Scanning
-Small molds, plastic products, shoe last and soles mold, sculpture, artifacts, toy, etc.
-Tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.

Features
1. The EaScan 3D Scanner adopt sealing design to keep away dust, prolong lifetime and decrease maintain cost
- For the dusty working environment in carving industry , the EaScan 3D Scanner adopt sealing design to keep away dust, prolong machine lifetime and decrease maintain cost.

2. No debugging, available of fast calibration
- The initial fixed structure design avoids hardware modification and realizes fast calibration.

3. STL output, seamless interface with carving programming software and CNC machine
- The mating software can output STL format, which can be input into carving programming software and CNC machine.


Specifications
Model: EaScan-H
Application in Measurement for:Tooth, jewelry design, core carving, fine pieces design, small toy parts, etc.
Single Scan Range: 40mm×30mm
Average sampling pitch:0.03mm
Scannable object size:<300mm
Scanning Type: White light, Non-Contact (Without Laser)
Ratio of image resolution:1,310,000 Pixels (which can be upgraded to 200 million, 300 million or even 500 million pixels according to customers` needs.)
Date Interface: ASC, AC,STL
Acquisition Time: <5S
Align Type Auto: Alignment; Manual selected point alignment
