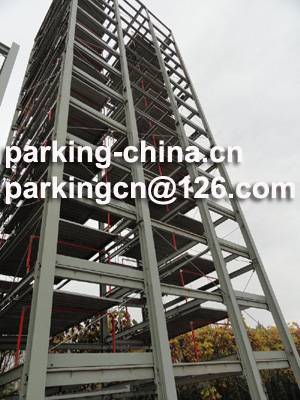

High level parking systems
Model: PSH15
|
|
Working Principle
Total is 3 columns 15 levels. Cars will be put into both sides and the middle is a path for car going in and out. It adopts special technology of hydraulic puzzle parking with high speed and high levels. It has screen supervision and control system outside.
3 car area can park 30 cars!
Characteristics of the System
-Functions of safety protection against over going and crashing.
-The whole system has galvanized treatment.
-High speed of operation with high efficiency.
-This type of parking system is designed with frequency conversion device.
-Hydraulic drive has advantages of overloading protection, empty loading motor starting, energy saving and environment protection.
-The automated control system has fault diagnosis and display function for a quick solution to the malfunctions.
Adapted places
High levels sites
Parameters
Mode of drive Hydraulic drive
Size of car (L?W?H) 5000mm?1850mm?1550mm
Weight of car 2000kg
Lifting motor power 5.5-11kw
Lifting speed 12-38m/min
Sliding motor power 0.2kw
Sliding speed 8m/min
Electricity AC380V,50Hz, 3 phases 5 wires system
Safeguard devices Hydraulic whole protection and anti-fall frame Anti-fall frame (our patent)
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion paint
Modes of operation LCD/ IC card/Manual
Controller PLC
Way of parking in and out Forwarding, reversing into the space
|
|
