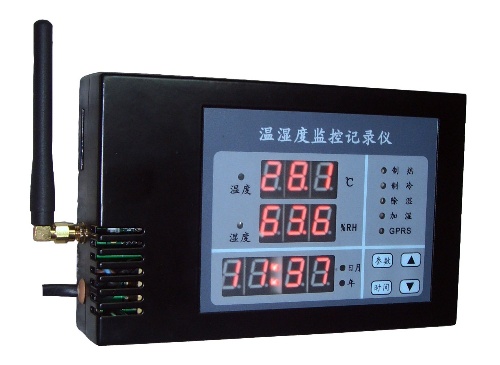

WS32GPRS wireless remote temperature and humidity monitoring recorder
Model: WS32GPRS
WS32GPRS temperature and humidity intelligent remote monitor is designed specifically designed and manufactured a temperature and humidity of the data capabilities of GPRS transmission monitoring recorder. It has high accuracy, high stability, low power, break automatically reconnect, data is automatically uploaded and so on. It combines sensing technology, computer technology, communication technology can be widely used drug storage, agricultural research, industrial, environmental, health and epidemic prevention, laboratory, construction, warehousing, transportation, museums, greenhouses, low temperature storage of transport vehicles and other fields .

This product records the temperature and humidity data is transmitted via the GPRS network, GPRS network coverage, with a widely distributed, not limited by space distance characteristics. The monitor uses imported digital sensor, measurements are accurate and reliable, real-time monitoring of the environmental temperature and humidity, and automatically record temperature and humidity data in the environment. High degree of automation products, powerful, stable performance, adaptability, without the manpower management is the need for the upgrading of remote monitoring equipment.

Temperature measurement

The temperature sensor selected American DALLAS Company production of single-bus digital temperature sensor. The temperature range is -55 º C to +125 º C, accuracy ± 0.5 º C. It is characterized by single-bus technology, digital transmission, temperature responsive. Using a digital temperature sensor to replace the traditional methods of sampling, amplification, AD circuit, single-bus is a digital transmission, there is enough anti-jamming capability in a variety of complex work environment, you can high-precision, long continued job.

Humidity measurements

Humidity sensors use the proportion of French HUMIREL produced linear frequency output of humidity sensor component HS1101 capacitive humidity sensor based on hard package applies specifically to the need for accurate and reliable detection humidity place. It is characterized by a linear frequency output humidity detection module, the proportion of 10% RH to 95% RH stable linear frequency output, temperature characteristics, high reliability and long term stability, quick off in the long saturated wet, fast response time, high resistance to chemicals, flooding did not affect the use patented solid-state polymer structure, stable and reliable performance.

Main features:

GPRS network transmission, without wiring, installation is not geographical, space constraints.
2, the sensor uses to import digital components, real-time accurate measurement of the environment temperature and humidity.
3, Automatic temperature and humidity monitoring, record storage and alarm.
4 built-in mass storage Automatic storage temperature and humidity data.
Permanent data preservation, power failure without loss of any software to check temperature and humidity data.
By setting the temperature, humidity, the upper and lower limits to achieve the automatic alarm function.
7, comes with a permanent calendar clock, and power outages do not affect travel time.
8, temperature and humidity limit value gauge short message alarm.
9, user-friendly design, easy to install, compact appearance.



Parameters as follows:

Name parameter

Temperature measurement range -55 oC To 125 oC

Humidity Range 10% RH To 95% RH

Temperature measurement accuracy of 0.5 º C

Humidity measurement accuracy of 3% RH

Temperature display resolution 0.1 oC

Temperature Display Resolution 0.1% RH

Operating temperature range -40 oC To 80 oC

Temperature correction range ± 9.9 º C

Humidity calibration range of ± 9.9% RH

Match antenna 50Ω/SMA female

GPRS GSM / GPRS Class 10

Power supply 220V 50Hz

Weight 0.6 Kg

Volume of 180 mm × 112 mm × 42 mm

Power of 2W
