Camera

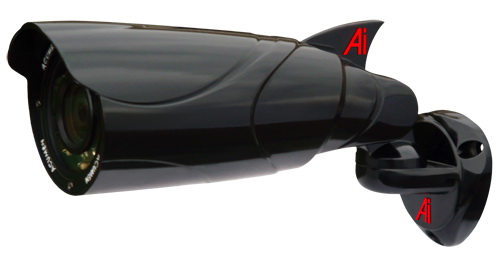

Model: Ai-A24
Specifications

TV System PAL/NTSC
Image Sensor 1/3" Sony EXview HAD II, 960H
DSP SONY Effio-E
Image dimensions PAL:976 x 582 Pixels
NTSC:976 x 494Pixels
Video Output 1Vp~p Composite/75ohm (BNC connector)
Resolution 720TVL
Minimum Illumination 0.001 Lux (F2.0/F1.2/F1.5)
IR LED Ai-A24K: 24pcs, effective 40m
Ai-A24N:18pcs, effective 60m
Ai-A24M: 12pcs (incl 6pcs Hi-Power Reflective), effective100m
Lens Ai-A24K: 4.3mm, F2.0
Ai-A24N: 2.8~10.0mm, F1.2
Ai-A24M: 9.0~22.0mm, F1.5, Megapixel
Mechanical IRIS Auto IRIS Control
Waterproof level IP68
Signal-to-noise Ratio over 50db
Synchronization System Internal
White Balance AUTO
Power Supply DC12V±10%
Temperature Sensor build in temperature sensor
Heater YES
Antivandal YES
Power consumption 6W
Operating Temperature -65oC ~ +65oC
Humidity up to 100%
Bracket 3D super-water-proof
