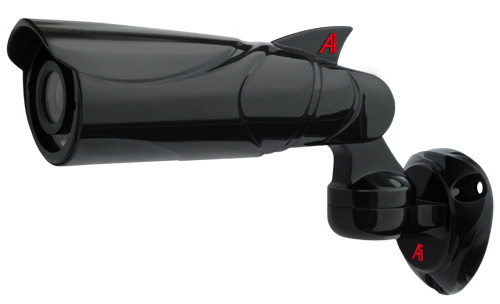

Ai-M42 Camera
Model: Ai-M42
TV System:PAL/NTSC
Image Sensor:1/3" SHARP CCD
Image dimensions:
PAL:795 x 596 Pixels
NTSC:811 x 508Pixels
Video Output:1Vp~p Composite/75ohm (BNC connector)
Resolution:600TVL
Minimum Illumination:0.001 Lux (F2.0)
IR:Controlled by a CDS sensor
IR Working Range:6pcs, Effective 20 Meters
Lens:Ai-M42K: 4.3mm, F2.0
Waterproof level:IP68
Signal-to-noise Ratio:over 48db
Synchronization System:Internal
Backlight Compensation:AUTO
Shuttle:AUTO
White Balance:AUTO
Power Supply:DC12V?10%
Day & Night:Auto
Power consumption:4.5W
Operating Temperature:-65?C ~ +65?C
Humidity:up to 100%
Bracket:3D super-water-proof
