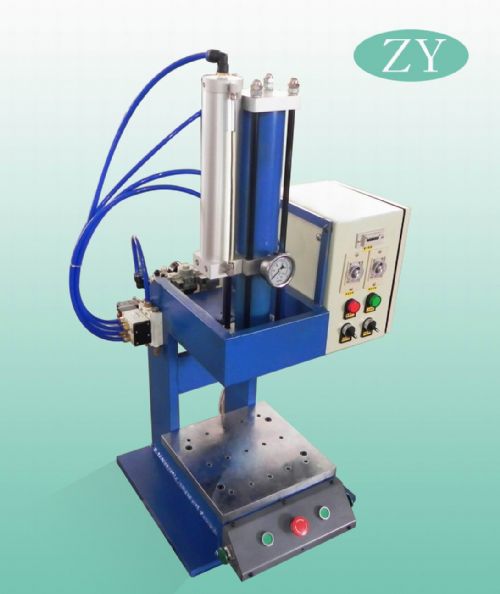

C Frame Hydro Pneumatic Press


Model: ZYBP
1.with compressed air as power, no noise and easy to operate
2.low air consumption yet big force.
3.one year quality warranty.

Hydro Pneumatic press for riveting and stamping

Hydropneumatic cylinder is the name of the new generation of power cylinders for press and plant engineering applications.
The cylinder is used when high forces are required, for example for punching, splitting, pressing, stamping, molding, riveting, clamping, compressing or spot welding.
In power stroke mode users are provided with many times the force of a comparable conventional pneumatic cylinder with the same air consumption.

Hydropneumatic cylinder is designed in the same way as a doubleacting pneumatic cylinder and is also controlled in the same manner.
It is equipped with a pneumohydraulic pressure booster which generates a power stroke when necessary depending on the counterforce.
The power cylinder can be operated directly from the compressed air network by means of a pneumatic valve.

Characters:
With pressed air as the power, simple to operate,
Making no noise during standby of the oil hydraulic system, saving the electricity and reducing production cost,
Cylinder stroke adjustable and customized for special request,
Easy to adjust the output, the required pressure can be reached by simply adjusting the pneumatic pressure, easy and convenient,
Safe and human-centered design, comfortable and durable operation,
Allows adding heating modules and temperature controller, as well as forcing transducer additionally,
Available working platform: 600*600*720mm.
Application:

Stamping sign Bending profile
Punching die Die cutting rigid material
Touch-welding profile Squeezing die and forming
Flattening and straightening Riveting and forging
Shaping metal plateClosing assembly
Testing material Riveting joint
