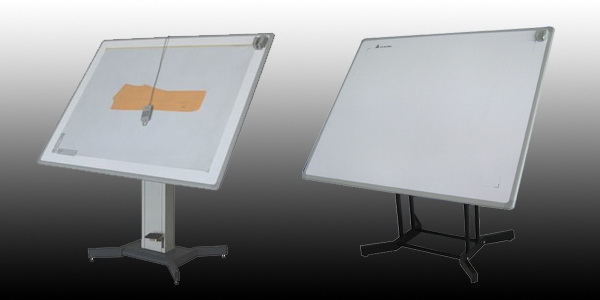

Digitizer tablet


Model: A0 A00
Quick DetailsProducts Status: Stock Brand Name: SOPHEEA Model Number: A0
Place of Origin: Beijing China (Mainland) Large format: White 100 to 12800 lpi: 16-key cursor
Packaging & DeliveryPackaging Detail: Paper carton Packing size: 1600*1250*150mm 60 sets for one container(20 feets)
Delivery Detail: One week after confirm the order

SpecificationsLarge format digitizer
Area:36*48inch/914*1219mm
0.2 to 0.12mm precision
Warranty period of one years
2 cursor

With more than 20 years experience in digitizing field,the performance of highprecision,reliability and stability of CD series tablet digitizers have passed the tests throughout the years and won the creditability among the users. It has a wide range of models,their active areas ranging from 12X12 inches/305x305mm to 44x60 inches/1118X1524mm.CD Series digitizers adopt the aerial honeycomb sandwich structure and it makes the board thinner and a better rigidity.It strictly meet the requirements and are chosen as the standard equipment by militaries.The precision of common tablet is 0.2mm which is applicable in engineering,machinery and fashion design fields. The precision of high digitized digitizer is 0.12mm which is applicable

in geological,mapping and territorial fields.It also have a good compatibility and more than 120 supporting software,including kinds of CAD,GIS software.CD series digitizers have a warranty period of three years.Moreover,we can provide adequate spare parts,quick service and reasonable price.The nonstandard models of digitizers and backlight digitizers can also be customized.

Specifications:

Mode Active Area Precision Weight
Total/Net
A0 CD-91200B36*48inch 0.12mm34kg/30kg
914*1219mm
CD-91200L 0.20mm

Working principle: Electromagnetic induction Data rate: 0-200pps
Interface: RS232,USB
Working method: Prompt,Run,Track,Line,Point,Delta,Increase,Mouse
Output format:31 types of industrial standard formats,1 specific format.Be able to emulate

all formats used in all digitizers.
Baud rate: 150-19200 Voltage: 220V/110V,50/60Hz
Working temperature: -5 to 50 degreeStorage temperature: -20 to 60 degree

Optional accessories:
1.Elevator and adjustable angle kickstand(Atuomatic hydraulic pressure,Electro motion and fixation)
2.Wireless cursor
3.Pen-type cursor
