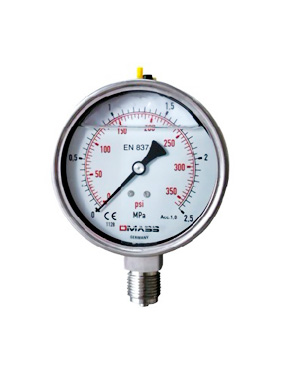

DMASS bourdon tube pressure gauge st.st.series MBS
Model: MBS10
|
|
Applications:
1.chemical/petro-chemical industry
2.hydraulics system
compressors
3.wind power industry
4.shipping industry
Special Features
1.special process connection for various application
2.special oil filling reach requirement of ambient temperature - 40
combined with various chemical seals for difference application
3.Max. scale range reach 1600bar
4.various throttles against shocking and vibration
Technical data
Design:EN 837-1
Nominal size in mm:63,100
Accuracy class: NS 63: 1.6% NS 100: 1.0%
Scale ranges:0...0.6 to 0...1000 bar
vacuum pressure is available
Case:st.st.1.4301,with pressure relief @the position of 12 o‘clock
Ranges 0/16 bar with compensating valve-position
12 o‘clock
Bezel ring: stainless steel, flat bezel
Window: NS 63: plastic NS 100: Laminated safety glass
Dial:Aluminium,white
Pointer:Aluminium,black
Movement:stainless steel
Process connection:lower mount or back mount stainless steel |
|
