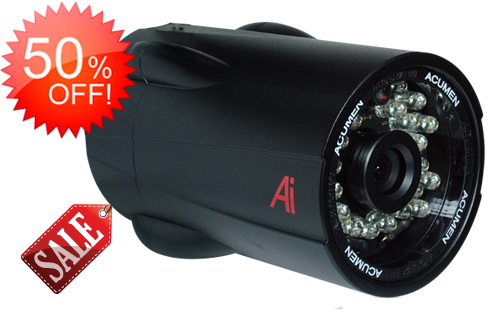

Ai-WP34 Camera


Model: Ai-WP34
Specifications
TV System PAL
CCD-sensor 1/3" Sony Super HAD II
Image dimensions PAL:537 x 597Pixels
Synchronization System Internal
Resolution 480 TVL
Minimum Illumination 0 Lux(IR LEDs on 0.5 lux/F1.6)
IR Working Range 20 Meters
IR LEDs 24 pcs
Auto Gain Control Automatic
Electronic Shutter Automatic, 1/50(60) sec.~1/100,000sec.
Backlight Compensation Automatic
Signal-to-noise Ratio 48db
Video Output 1Vp~p Composite/75ohm
White Balance 3200? ~ 9,200?
Power Supply 12V DC
Power consumption 2.5W
Lens/Angle of view (Horizontal) Standard: f4.3mm/f6.0mm
Operating Temperature -55C ~ +50C
Operating Humidity 85% or less
Dimensions 100 x 60 mm
